Altech ALritma labeling head

No. 135149

Type of offer::: Selling
Price:: not specified
Available quantity:: 1 pc
Valid for:: 12 days
User:: tminkjet
Company:: TM INK-JET
Name and surname:: Tomasz Mrowiec
Contact:

On a roll machine, on a flowpack, on a carousel machine, on a conveyor, from the top, from the side, from the bottom - there are many possibilities for using a labeling head. It is important to choose its configuration for the application needs and line efficiency.

Our offer includes heads that can meet almost any requirements - from the simplest ALstep to the fast ALritma X head.

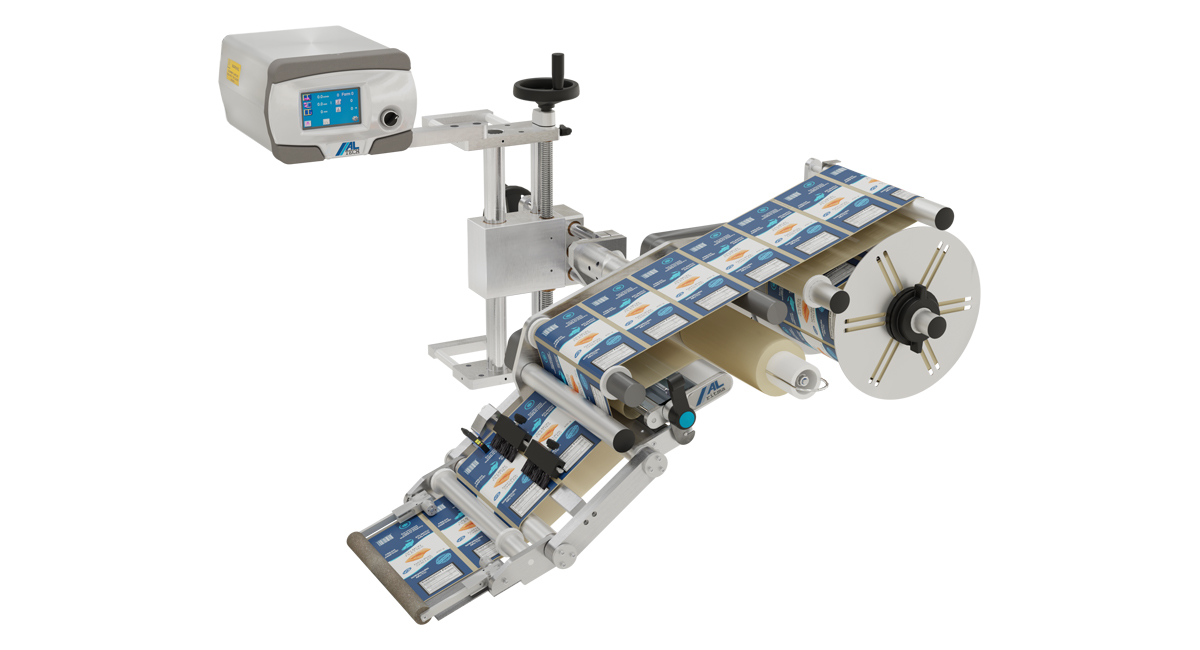

The ALritma device is a high-performance labeling head designed for integration with packaging lines that require high performance and reliability. The design is based on innovative mechanical solutions that make the machine universal. The ALritma device is a high-performance labeling head designed for integration with packaging lines that require high performance and reliability. The design is based on innovative mechanical solutions that make the machine universal. The head is available in three versions: S, M and L corresponding to the width of the label tape, respectively: 100, 200 and 300 mm. The label ribbon drive system allows for maximum use of the stepper motor properties, guaranteeing accuracy and repeatability of the application, even at the highest labeling speeds. Access to the label tape guide system from the side makes it much easier to put it on the head. The device is controlled by a microprocessor, and the touch screen with a display allows you to change all available parameters, thus eliminating the need for the operator to make complicated and time-consuming mechanical adjustments when changing the label format.

The controller allows you to adjust the following head operating parameters:

ejecting the label from the blade (with an accuracy of 0.1 mm)
speed regulation (accurate to 0.1 m/min) - up to 50 m/min
Adjusting the position of the label on the package (in mm)
ability to correct the acceleration/deceleration curve of the stepper motor
ability to save parameters of individual label formats
automatic detection of missing label on the ribbon (with automatic ribbon advance)
the possibility of progressive and regressive counting of issued labels
blocking of double application start signal from one package
end of label roll and broken tape indication
possibility of connecting to the production line control system
