Arburg 320C 500-100 injection molding machine, 50t, 2004

SZCZEP-POL
Sale of injection molding machines and peripherals

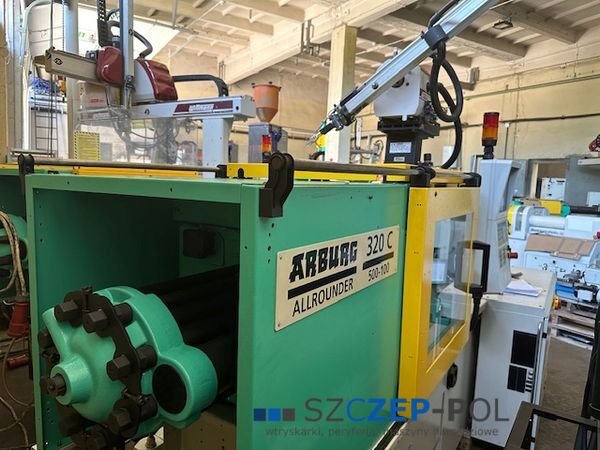

Type: Arburg 320C 500-100 / Machine in excellent technical condition
Year of production: 2004

Description:

Injection elements:
Screw diameter: 25 mm
Injection weight: 45 g
Injection pressure: 2000 bar
Injection volume: 49 cc

Closure elements:
Closing force: 50 t
Clearance between columns: 320x320 mm
Table plate dimensions max: 446x446 mm
Ejector: hydraulic
Closing system: hydraulic

Control:
SELOGICA (with the possibility of translation into Polish)

Additional equipment:
The machine is in excellent technical condition and was used to test injection molds
Operating hours: 25,739 h in automatic mode
Total working hours: 30,661 h
Hydraulic core string x 1
Reinforced injection system - bimetal
Proportional valve on the injection system - precise injection
Kistler sensor - pressure control in the mold
It is possible to change the screw diameter to smaller or larger: 20 mm or 30 mm

Dimensions:
Weight: 2300 kg
Length/Width/Height: 3.18x1.47x1.99 m

Power supply:
Pump/Motor: 15 kW
Heaters: 4.9 kW
Total: 19.9 kW

Price: on request

We invite you to present the machine at work in Łódź.
Our offer includes all additional peripheral devices necessary to create a production line, as well as tooling machines.
We are Europe's leading supplier of used machines for plastics processing: injection molding machines, peripherals and tooling machines.
All devices offered by our company are located in our warehouses in Łódź.

LEASING possible! At the client's request, we can help in organizing leasing in a simplified form, through leasing companies with which we cooperate.
FREE: training in operating the selected machine
FREE: loading of devices after sale
