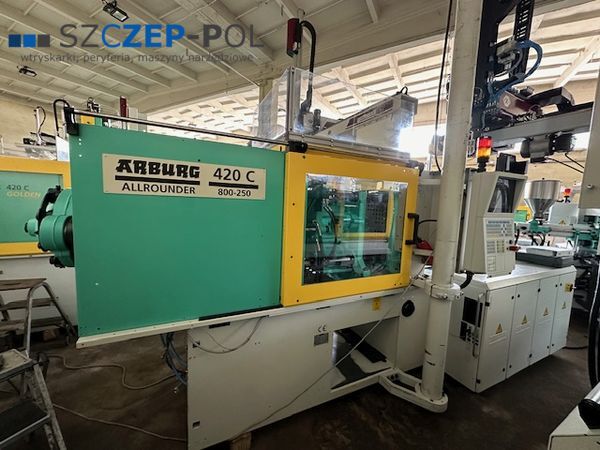

Arburg 420C 800-250 injection molding machine with Wittmann W721 robot

SZCZEP-POL
Sale of injection molding machines and peripherals

Type: Arburg 420C 800-250 with Wittmann W721 robot
Year of production: 2004

Description:

Injection elements:
Screw diameter: 30 mm
Injection weight: 89 g
Injection pressure: 2470 bar
Injection volume: 106 cc

Closure elements:
Closing force: 80 t
Clearance between columns: 420x420 mm
Table plate dimensions max: 570x570 mm
Ejector: hydraulic
Closing system: hydraulic

Control:
SELOGICA (with the possibility of translation into Polish)

Additional equipment:
Euromap 67
Robot interface
Air valve x 2
Hydraulic core string x 2
Hot runner control
Reinforced injection system - bimetal
Proportional valve on the injection system - precise injection
Kistler sensor - pressure control in the mold
Original mold crane

Wittmann W721 robot
Year of production: 2007
4-axis robot: X, Y, Z axes driven by servo motors (electric); C axis
Crossings on axes: X-550, Y-1200, Z-1250
Touch control panel
Robot base (adapter)
Purchase of the robot for an additional fee

Dimensions:
Weight: 3180 kg
Length/Width/Height: 4.30x1.64x2.08 m

Power supply:
Pump/Motor: 15 kW
Heaters: 6.5 kW
Total: 21.5 kW

Price: on request

We invite you to present the machine at work in Łódź.
Our offer includes all additional peripheral devices necessary to create a production line, as well as tooling machines.
We are Europe's leading supplier of used machines for plastics processing: injection molding machines, peripherals and tooling machines.
All devices offered by our company are located in our warehouses in Łódź.

LEASING possible! At the client's request, we can help organize leasing in a simplified form, through leasing companies we cooperate with.
FREE: training in operating the selected machine
FREE: loading of devices after sale
