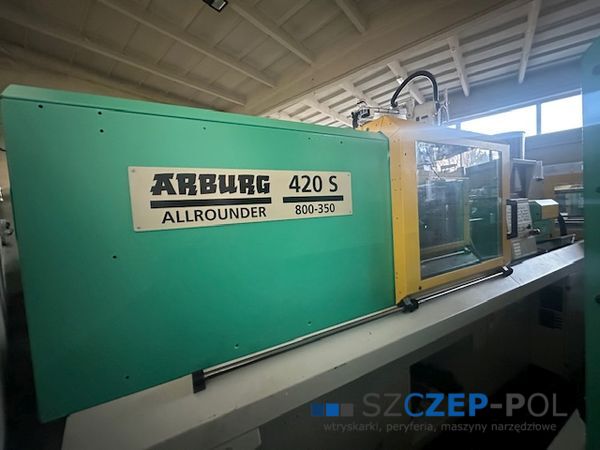

Arburg 420S 800-350 injection molding machine, 80 tons, 2003

SZCZEP-POL
Sales of injection molding machines and peripherals

Type: Arburg 420S 800-350
Year of production: 2003

Description:

Injection elements:
Screw diameter: 50 mm
Injection weight: 250 g
Injection pressure: approx. 1300 bar
Injection volume: 288 cc

Closing elements:
Closing force: 80 t
Clearance between columns: 420x420 mm
Table top dimensions max: 570x570 mm
Ejector: hydraulic
Closing system: hydraulic

Control:
SELOGICA (with the possibility of translation into Polish)

Additional equipment:
Euromap 12
Robot interface
Air valve x 1
Core string control
Reinforced injection system - bimetal
Proportional valve on the injection system - precise injection
Integrated original Arburg side picker

Dimensions:
Weight: 3800 kg
Length/Width/Height: 4.06x1.39x2.12 m

Power supply:
Pump/Motor: 18.5 kW
Heaters: 10.2 kW
Total: 28.7 kW

Price: upon request

We invite you to see the machine in operation in Łódź.
Our offer includes all additional peripheral devices necessary to create a production line, as well as tool machines.
We are a leading European supplier of used plastics processing machines: injection molding machines and peripherals, and tooling machines.
All devices offered by our company are located in our warehouses in Łódź.

Possibility of LEASING! At the client's request, we can help organize leasing in a simplified form, through leasing companies with which we cooperate.
FREE: training in the operation of the selected machine
FREE: loading of devices after sale
