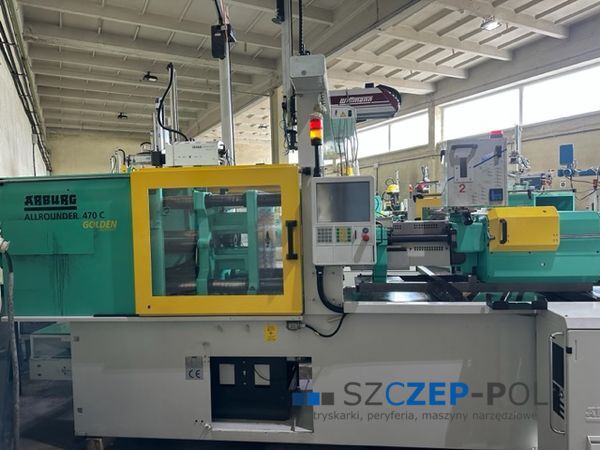

Arburg 470C 1500-400 injection molding machine with Wittmann W721 robot, 150 tons, 2006

SZCZEP-POL
Sale of injection molding machines and peripherals

Type: Arburg 470C 1500-400 with Wittmann W721 robot
Year of production: 2006

Description:

Injection elements:
Screw diameter: 40 mm
Injection weight: 184 g
Injection pressure: 2000 bar
Injection volume: 201 cc

Closure elements:
Closing force: 150 t
Clearance between columns: 470x470 mm
Table plate dimensions max: 650x650 mm
Ejector: hydraulic
Closing system: hydraulic

Control:
SELOGICA - tactile (with the possibility of translation into Polish)

Additional equipment:
Euromap 67
Robot interface
Air valve control
Hydraulic core string x 1
Reinforced injection system - bimetal
Built-in conveyor belt and sorting flap

Wittmann W721 robot
Year of production: 2006
4-axis robot: X, Y, Z axes driven by servo motors (electric), C axis - pneumatic
Crossings on axes: X-550, Y-1200, Z-3000
Touch control panel
Security package
Robot base (adapter)
Purchase of the robot for an additional fee

Dimensions:
Weight: 4900 kg
Length/Width/Height: 4.44x1.63x2.09 m

Power supply:
Pump/Motor: 18.5 kW
Heaters: 10.2 kW
Total: 28.7 kW

Price: on request

We invite you to present the machine at work in Łódź.
Our offer includes all additional peripheral devices necessary to create a production line, as well as tooling machines.
We are Europe's leading supplier of used machines for plastics processing: injection molding machines, peripherals and tooling machines.
All devices offered by our company are located in our warehouses in Łódź.

LEASING possible! At the client's request, we can help in organizing leasing in a simplified form, through leasing companies with which we cooperate.
FREE: training in operating the selected machine
FREE: loading of devices after sale
