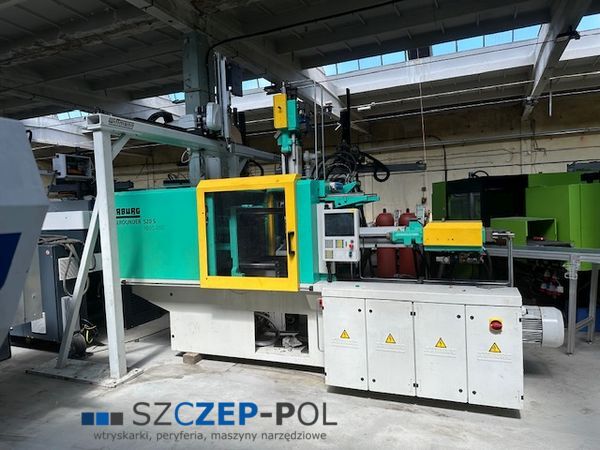

Arburg 520S 1600-290/100 injection molding machine / Production line with Wittmann W823 robot

SZCZEP-POL
Sales of injection molding machines and peripherals
Type: Arburg 520S 1600-290/100 / Production line with Wittmann W823 robot / Operating hours: 19,957 h in automatic mode
Year of production: 2011
Description:
Injection elements:
Screw diameter: 35 mm
Injection weight: 132 g
Injection pressure: 2000 bar
Injection volume: 144 cc
Closing elements:
Closing force: 160 t
Clearance between columns: 520x520 mm
Table top dimensions max: 695x695 mm
Ejector: hydraulic
Closing system: hydraulic
Control:
SELOGICA - touch screen (with the possibility of translation into Polish)
Additional equipment:
Two-unit injection molding machine with rotary table and robot
Very good technical condition
Operating hours: 19,957 h in automatic mode
Total working hours: 27,945 h
Euromap 67
Robot interface
Air valve x 3
Hydraulic core string, needle type, controlled by proportional valve x 2
Reinforced injection systems - bimetal
Proportional valves on injection systems - precise injection
The machine has two accumulators (nitrogen cylinders) - nitrogen charging for fast operation
Parallel movements
Vertical screw diameter: ⌀25 mm - 45 g/PS
Original turntable
Purchase of a turntable for an additional fee

Wittmann W823 Robot
Year of production: 2015
5-axis robot: X, Y (telescopic), Z axes driven by servo motors (electric); C axis and A movement
Travel in axes: X-550, Y-1400, Z-3500
Touch control panel
Safety package
Robot base (adapter), safety cage
Robot purchase for an additional fee
Dimensions:
Weight: 6720 kg
Length/Width/Height: 4.41x1.84x3.20 m
Power supply:
Pump/Motor: 0 kW
Heaters: 0 kW
Total: 0 kW
Price: upon request
We invite you to see the machine in operation in Łódź.
Our offer includes all additional peripheral devices necessary to create a production line, as well as tool machines.
We are a leading European supplier of used plastics processing machines: injection molding machines and peripherals, and tooling machines.
All devices offered by our company are located in our warehouses in Łódź.
Possibility of LEASING! At the client's request, we can help organize leasing in a simplified form, through leasing companies with which we cooperate.
FREE: training in the operation of the selected machine
FREE: loading of devices after sale
