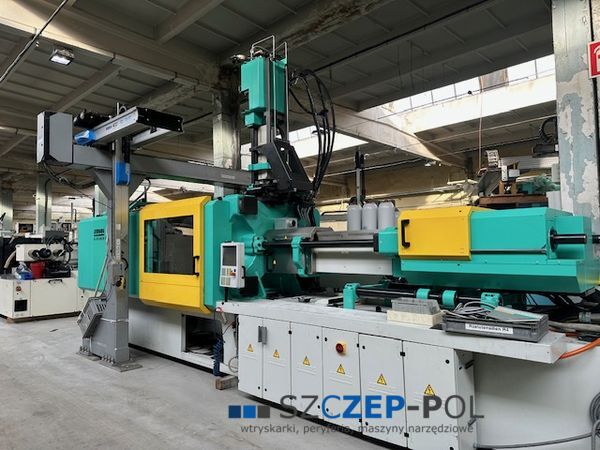

Arburg 820S 4000-2100/400, 400t injection molding machine, 2012

SZCZEP-POL
Sale of injection molding machines and peripherals

Type: Arburg 820S 4000-2100/400 / Production line with Sepro Industrial Robot SR S5-35 S3 Trans robot / Operating hours: 42,014 h in automatic mode
Year of production: 2012

Description:

Injection elements:
Screw diameter: 60 mm
Injection weight: 723 g
Injection pressure: 2500 bar
Injection volume: 792 cc

Closure elements:
Closing force: 400 t
Clearance between columns: 820x820 mm
Table plate dimensions max: 1171x1171 mm
Ejector: hydraulic
Closing system: hydraulic

Control:
SELOGICA - touch screen (with the possibility of translation into Polish)

Additional equipment:
Two-unit injection molding machine, with a rotary table and a robot
Very good technical condition
Operating hours: 42,014 h in automatic mode
Euromap 67
Robot interface
Air valve x 6
Hydraulic, needle core string controlled by a proportional valve x 4 pairs
Hot runner control x 24
Reinforced injection systems - bimetal
Proportional valve on the vertical injection system - precise injection
The machine has six batteries (nitrogen cylinders) - nitrogen charging for fast work
Parallel movements
Automatic mold height adjustment
Screw diameter in a vertical arrangement: ⌀40 mm - 184 g/PS
Kistler sensor - pressure control in the mold
Original Weber rotary table: very precise table, electrically driven by a servomotor controlled by an inverter
Rotary table diameter: 1200 mm
Purchase of a turntable for an additional fee

Robot Sepro Industrial Robot SR S5-35 S3 Trans
Year of production: 2012
3-axis robot: X, Y, Z axes (telescopic) driven by servo motors (electric)
Crossings in axes ca.: X-5000, Y-1400, Z-2000
Automatic axle lubrication
Touch control panel
Security package
Robot base (adapter), safety cage
Purchase of the robot for an additional fee

Dimensions:
Weight: 21000 kg
Length/Width/Height: 8.00x2.32x4.21 m

Power supply:
Pump/Motor: 0 kW
Heaters: 0 kW
Total: 0 kW

Price: on request

We invite you to present the machine at work in Łódź.
Our offer includes all additional peripheral devices necessary to create a production line, as well as tooling machines.
We are Europe's leading supplier of used machines for plastics processing: injection molding machines, peripherals and tooling machines.
All devices offered by our company are located in our warehouses in Łódź.

LEASING possible! At the client's request, we can help organize leasing in a simplified form, through leasing companies we cooperate with.
FREE: training in operating the selected machine
FREE: loading of devices after sale
