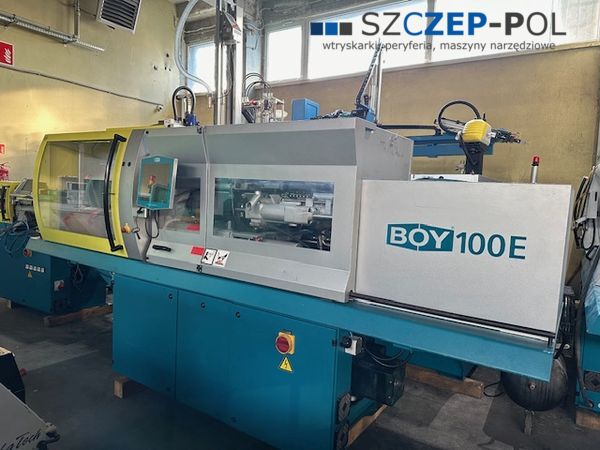

Boy 100E injection molding machine / Hybrid machine, 100 tons, 2014

SZCZEP-POL
Sales of injection molding machines and peripherals

Type: Boy 100E / Hybrid Machine
Year of production: 2014

Description:

Injection elements:
Screw diameter: 32 mm
Shot weight: 92.3 g
Injection pressure: 2127 bar
Injection volume: 96.5 cc

Closing elements:
Closing force: 100 t
Clearance between columns: 430x360 mm
Table top dimensions max: 750x650 mm
Ejector: hydraulic
Closing system: hydraulic

Control:
Procan Alpha 2 - touch screen (with the possibility of translation into Polish)

Additional equipment:
Hybrid machine: energy-saving, fast-running, very quiet
Euromap 67
Robot interface
Air valve control
Reinforced injection system - bimetal
The main engine in the machine - servo motor controlled by an inverter - energy saving

Dimensions:
Weight: 3530 kg
Length/Width/Height: 4.37x1.21x2.20 m

Power supply:
Pump/Motor: 15 kW
Heaters: 7.7 kW
Total: 22.7 kW

Price: upon request

We invite you to see the machine in operation in Łódź.
Our offer includes all additional peripheral devices necessary to create a production line, as well as tool machines.
We are a leading European supplier of used plastics processing machines: injection molding machines and peripherals, and tooling machines.
All devices offered by our company are located in our warehouses in Łódź.

Possibility of LEASING! At the client's request, we can help organize leasing in a simplified form, through leasing companies with which we cooperate.
FREE: training in the operation of the selected machine
FREE: loading of devices after sale
