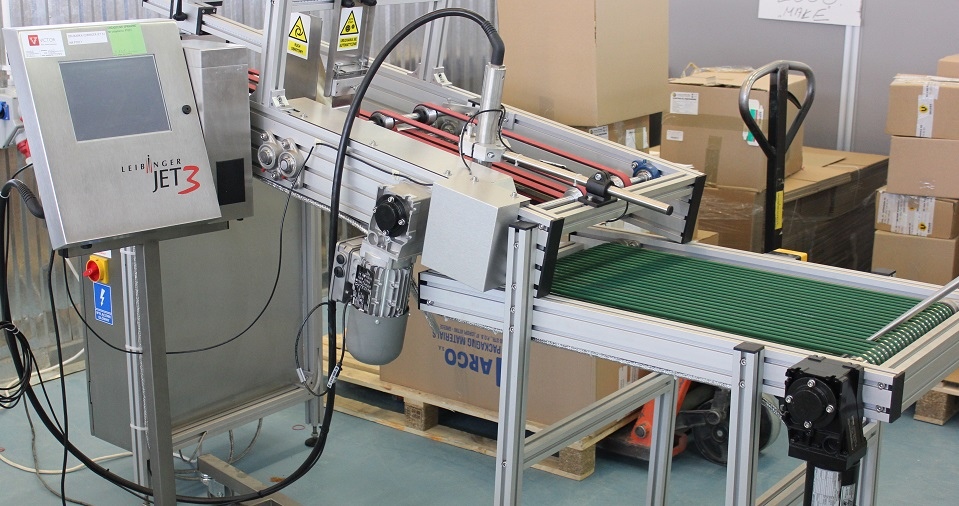

Carton tray with Leibinger Jet3 printer

No. 86369
Type of offer::
Selling
Price:
not specified
Valid for:
25 days
User:
tminkjet
Company:
TM INK-JET
Name and surname:
Tomasz Mrowiec
Contact:
DESCRIPTION OF THE DEVICE

The device allows to move at a constant speed, single cartons
from the vertical loading warehouse to the horizontal delivery warehouse.
When moving, you can print batch number and / or expiration date,
on a cardboard box using the Leibinger Jet3 or Jet2 Neo printer. You can also do this
To use high-resolution printers, based on HP technology,
HSAJET® MiniTouch or HSAJET Micron .
The labeled cartons are fed to the horizontal receiving warehouse, where they are from
can be received by the service.
The device is made of aluminum profiles and stainless steel and meets
requirements of current European directives.
It can also be made as a mobile station (on wheels).


TECHNICAL DATA

Length: 2300 mm
Height: 1300 mm
Width: about 850 mm
Performance of this application: about: 10 - 50.000 pcs / h
Dimensions of cartons 50-400mm
Movement speed: 5 - 50 m / min
Power supply: 1 f; 230V or 3F / 400V

STANDARD EQUIPMENT
Programmable counter of the described cartons.
Infinitely variable speed control with inverters.
Product counter sensor.
ADDITIONAL EQUIPMENT
Speed ​​Synchronization Module - encoder.
Fixing the laser head, printer.
Fixing the labeling system with XY regulation.
podajnik-leibinger-jet3
