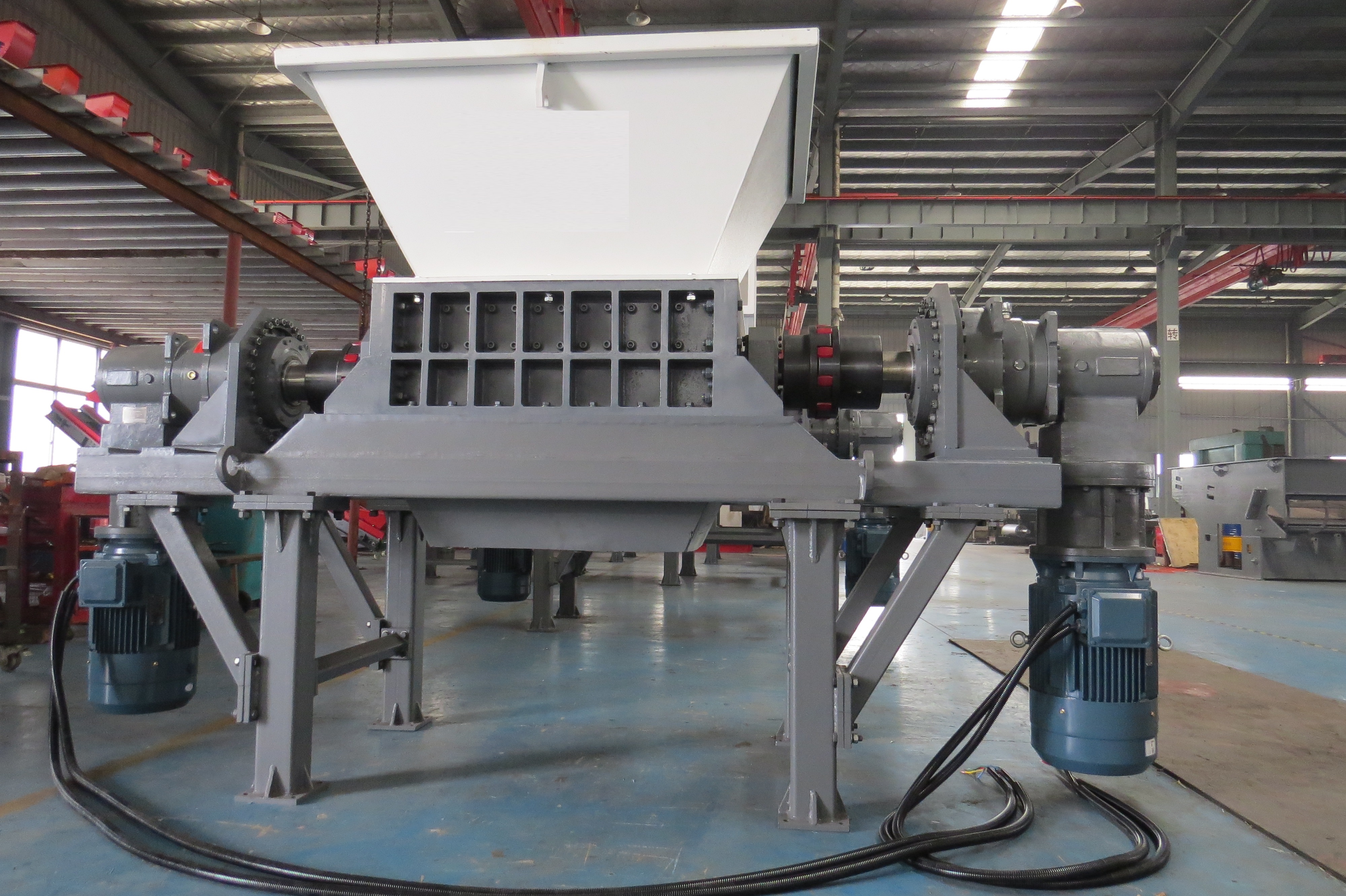

The double-shaft toothed crusher is designed for grinding barrels, PE PP containers, car tires, wooden and plastic pallets, etc.
The shafts have a high-strength steel structure. The shaft structure balances the static and dynamic properties to ensure smooth and reliable machine operation.
In the AMWT series double-shaft crusher, the crushing process and its result depend on the thickness of the cutting discs and the number of hook-shaped blades on the circumference of each disc. The right choice of blades will have an impact on the performance and the ability to crush a wide variety of materials.
The geometry of the shredder blades can be adjusted depending on the material being processed. Two counter-rotating shafts with specially designed blades and spacer combs positioned between the blades and attached to the walls of the shredding chamber cut the material into pieces with great force.
|
Model / parameter |
AMWT600 |
AMWT800 I |
AMWT800 II |
AMWT1000 |
AMWT1200 |
AMWT1500 |
|
Shaft length (mm) |
600 |
800 |
800 |
1000 |
1200 |
1500 |
|
Number of rotational knives (pcs.) |
twenty |
22 |
twenty |
24 |
30/24 |
50 |
|
Loam. fixed knives (pcs.) |
2 |
2 |
2 |
3 |
4 |
5 |
|
Motor power (kW) |
2 * 15 |
2 * 22 |
2 * 30 |
2 * 30 |
2 * 30/2 * 37 |
2 * 55/2 * 75 |
|
Chamber dimension (mm) |
480 * 600 |
820 * 800 |
820 * 800 |
1020 * 800 |
1220 * 800 |
1520 * 950 |
|
Dimension (L * W * H) (mm) |
2000 * 1100 * 1700 |
3000 * 1250 * 2150 |
3000 * 1250 * 2150 |
4200 * 1600 * 2150 |
4800 * 2000 * 2150 |
6000 * 2400 * 2650 |
|
Weight (kg) |
1700 |
5000 |
5000 |
6200 |
7500 |
11000 |
