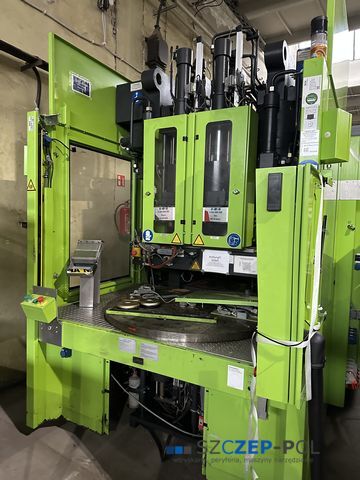

Engel Insert 80V/80V/100 2F injection molding machine / Two-unit machine, 100t. 2007

SZCZEP-POL
Sale of injection molding machines and peripherals

Type: Engel Insert 80V/80V/100 2F / Two-unit machine, tie-barless, vertical / Perfect technical condition
Year of production: 2007

Description:

Injection elements:
Screw diameter: 2 x 25 mm
Injection weight: approx. 49 g
Injection pressure: 1214 bar
Injection volume: 54 cc

Closure elements:
Closing force: 100 t
Clearance between columns: 0x0 mm
Ejector: hydraulic
Closing system: hydraulic

Control:
CC 200 (with the possibility of translation into Polish)

Additional equipment:
A tie-bar-less machine with two vertical injection systems and a rotary table
Air valve x 6
Hydraulic core string x 2
Hot runner control x 12
Infrared protective curtains
Thermoplastic and rubber injection units are available for this machine
Rotary table diameter: 1200 mm
The machine was regularly serviced by an authorized Engel service center in Germany

Dimensions:
Weight: 9400 kg
Length/Width/Height: 4.85x1.47x2.30 m

Power supply:
Pump/Motor: 30 kW
Heaters: 0 kW
Total: 0 kW

Price: on request

We invite you to present the machine at work in Łódź.
Our offer includes all additional peripheral devices necessary to create a production line, as well as tooling machines.
We are Europe's leading supplier of used machines for plastics processing: injection molding machines, peripherals and tooling machines.
All devices offered by our company are located in our warehouses in Łódź.

LEASING possible! At the client's request, we can help in organizing leasing in a simplified form, through leasing companies with which we cooperate.
FREE: training in operating the selected machine
FREE: loading of devices after sale
