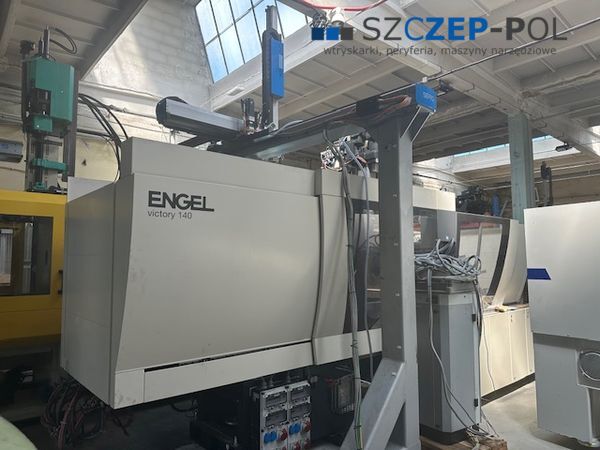

Engel Victory 330H/200V/140 combi Ecodrive / 140t injection molding machine. 2017

SZCZEP-POL
Sale of injection molding machines and peripherals

Type: Engel Victory 330H/200V/140 combi Ecodrive / Production line with Sepro Multi Inject 20 robot / Operating hours: approx. 18,000 h in automatic mode
Year of production: 2017

Description:

Injection elements:
Screw diameter: 30 mm
Injection weight: approx. 100 g
Injection pressure: 2400 bar
Injection volume: 113 cc

Closure elements:
Closing force: 140 t
Clearance between columns: 0x0 mm
Table plate dimensions max: 750x750 mm
Ejector: hydraulic
Closing system: hydraulic

Control:
CC 300 - touch screen (with the possibility of translation into Polish)

Additional equipment:
Two-unit injection molding machine, with a rotary table and a robot
A tie-bar-less, hybrid machine: energy-saving, fast, very quiet
Very good technical condition
Working hours: approx. 18,000 h in automatic mode
Total working hours: 25,369 h
Euromap 67
Robot interface
Air valve x 8
Hydraulic core string x 5
Hot runner control x 16
Reinforced injection systems - bimetal
Main motors - 2 x inverter-controlled servo motor
Proportional valves on injection systems - precise injection
Parallel movements
Kistler sensor - pressure control in the mold
Screw diameter in a vertical arrangement: ⌀25 mm - approx. 58g/PS
It is possible to purchase an original Foboha turntable for an additional fee
Rotary table diameter: 740 mm

Sepro Multi Inject 20 robot
Year of production: 2017
3-axis robot: X, Y, Z axes (telescopic) driven by servo motors (electric)
Crossings in axes ca.: X-4000, Y-1200, Z-1500
Automatic axle lubrication
Touch control panel
Security package
Robot base (adapter), safety cage
Purchase of the robot for an additional fee

Dimensions:
Weight: 10300 kg
Length/Width/Height: 5.56x1.76x3.46 m

Power supply:
Pump/Motor: 0 kW
Heaters: 0 kW
Total: 0 kW

Price: on request

We invite you to present the machine at work in Łódź.
Our offer includes all additional peripheral devices necessary to create a production line, as well as tooling machines.
We are Europe's leading supplier of used machines for plastics processing: injection molding machines, peripherals and tooling machines.
All devices offered by our company are located in our warehouses in Łódź.

LEASING possible! At the client's request, we can help organize leasing in a simplified form, through leasing companies we cooperate with.
FREE: training in operating the selected machine
FREE: loading of devices after sale
