No. 95198

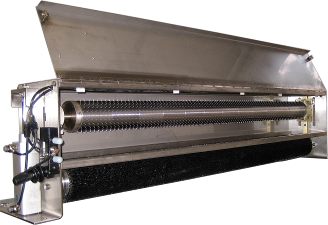

In the cold perforation process, the workpiece, such as paper, thin PE films or metallized films, is passed through segments with conical needles. This is the ideal solution, for example, for a sleeve sleeve that can not be hot perforated.
Parameters:
- thickness of perforated material: up to 500 μm
- depth of perforation: up to 7 mm (modulating hole diameter
through the hexagonal pneumatic cylinder nut)
Possible working width: 600 - 3'000 mm
- main shaft diameter: 90 mm
Brush diameter: 120 mm
- standard diameter of the needle segment: 100 mm
- standard patterns: simple or shifted
(5x5 / 10x10 / 15x15 / 20x20 / 15x20 [mm])
