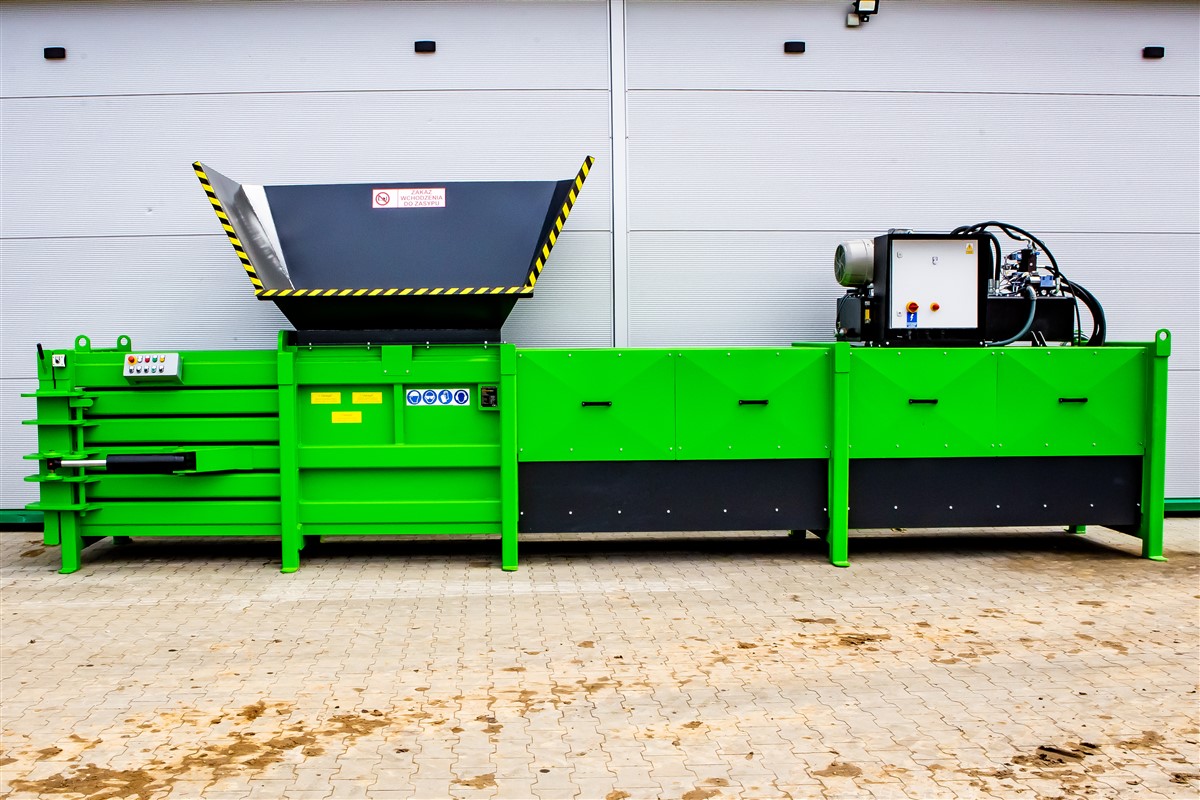

Horizontal baler - 800max

The price is for making an individual offer on a 800max baler.

The semi-automatic baler, 800MAX channel press delivers productivity of 2 tons per hour, making it ideal for waste treatment plants. The machine has a crushing force of 75 tons, a knife cutting off excess material in the charging chamber, a hard-wearing steel floor, a full bale indicator and a 15 kW three-phase motor. Optionally, the baler can be equipped with a number of additives, such as 1100L container tipping machine, co-operating conveyor belt, additional security, etc. Horizontal binding system makes it ideal for baling plastic PET bottles and aluminum cans. The entire process of forming a bale in addition to binding takes place in an automatic cycle.

The main feature of the 800MAX is the ability to eject a single bale, thanks to the elongated actuator.

Technical specifications of the baler:

- Dimensions / dimensions of the baler (height x width x depth) - 2565 mmx 1800mm x 9200mm

- baler weight - 7500 kg

- the size of the inlet (height x width) - 1800 mm x 920 mm

- bale dimensions - 1100 mm x 1050 mm

- bale weight - 800 kg - 1100 kg

- bale routing - 3.5 mm, 8 m - length

- number of wires - 5

- direction of binding - horizontal

- pressure - 250 bar

- pump size - 76.7cc, 14.5cc

- number of actuators - 2

- crushing power - 60 tons

- engine speed - 1440 rpm

- standard crushing cycle time - 15 kW / 70 seconds

- electric current - 35A (15 kW motor)

- electrical voltage - 415V

- electrical voltage - 415V

- cable length - 6 m

- internal electrical circuit - 24V DC
