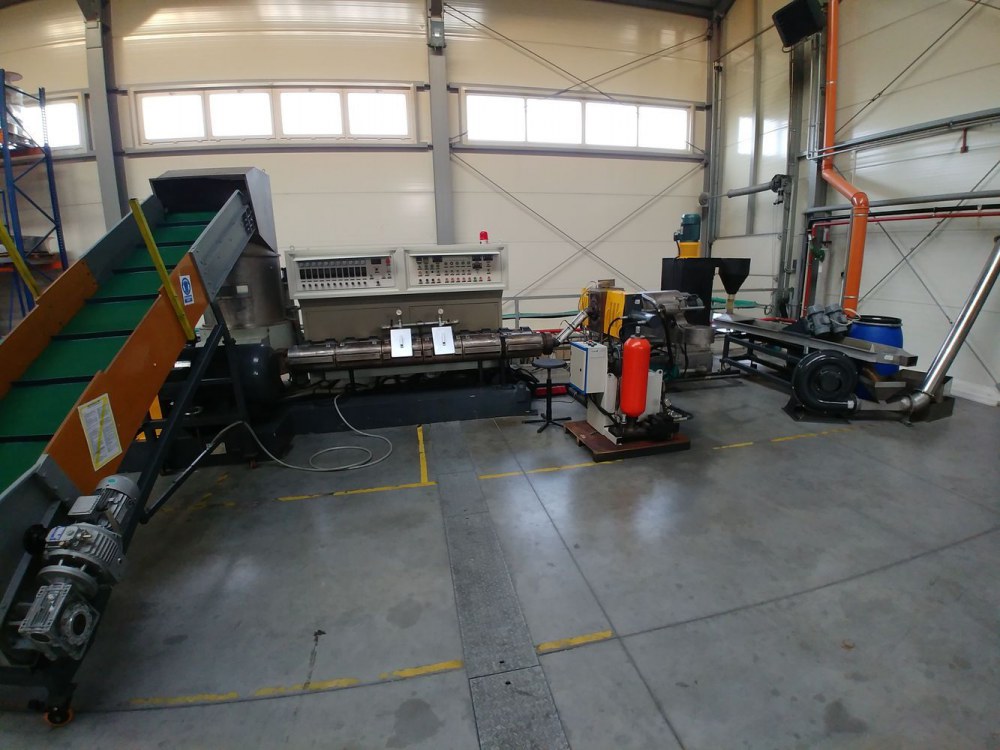

Plastics waste granulation line (used) Super Stan!

. Belt feeder for compactor

Engine power: 1.5kw

Tape width: 700mm

2. Compactor

Engine power: 55kW,

Diameter of the compactor: 800mm
Amount of cutting knives: 3 groups
Number of fixed knives: 17 pcs
Temperature sensor inside the compactor
Coating system of the compactor (water and air)

3. Single screw extruder

Snail: 38CrMoA1A, nitrided

Cylinder: 38CrMoAlA, nitrided, cylinder cooled with air;

Motor power: 90kW AC controlled by inverter

Diameter of the screw: Ø100mm;

L / D = 36: 1;

Maximum rotational speed of screws: 140rpm

The degassing system: vacuum pump: 3kw

Double degassing

Heating zones: AL heaters, air-cooled

7 heating zones,

Air cooling, cooling power: 0.37Kw × 7;

Capacity: 250 - 300kg / h

4. Hydraulic, plate changer

The diameter of the filtering surface: 200 mm

Maximum pressure: ≤35Mpa

Without stopping the extruder, without leaks, screen change time ≤ 2 seconds

Material: 38CrMoAl

Heating power: 12KW

5. Cutting in the water ring

Head material: 40Cr, nitrided

Head heating system

Rotational speed of knives: controlledinverter

Number of cutting knives: 2-4 pcs, made of W18Cr4V material

6. Centrifuge

Maximum capacity: 500kg / h

7. Vibrating table

Power of vibrator motors: 2 x 0.32kW

Segregating grid made of stainless steel

Water tank made of stainless steel

Water pump: 4 kW engine

8. Material transport system

Engine power: 3.7kW speed: 2800r / min

Diameter of the pipe: Ø100mm

Silo capacity: 1m3

Capacity: 500kg

Injector and transport pipes made of stainless steel

The tank is made of stainless steel
