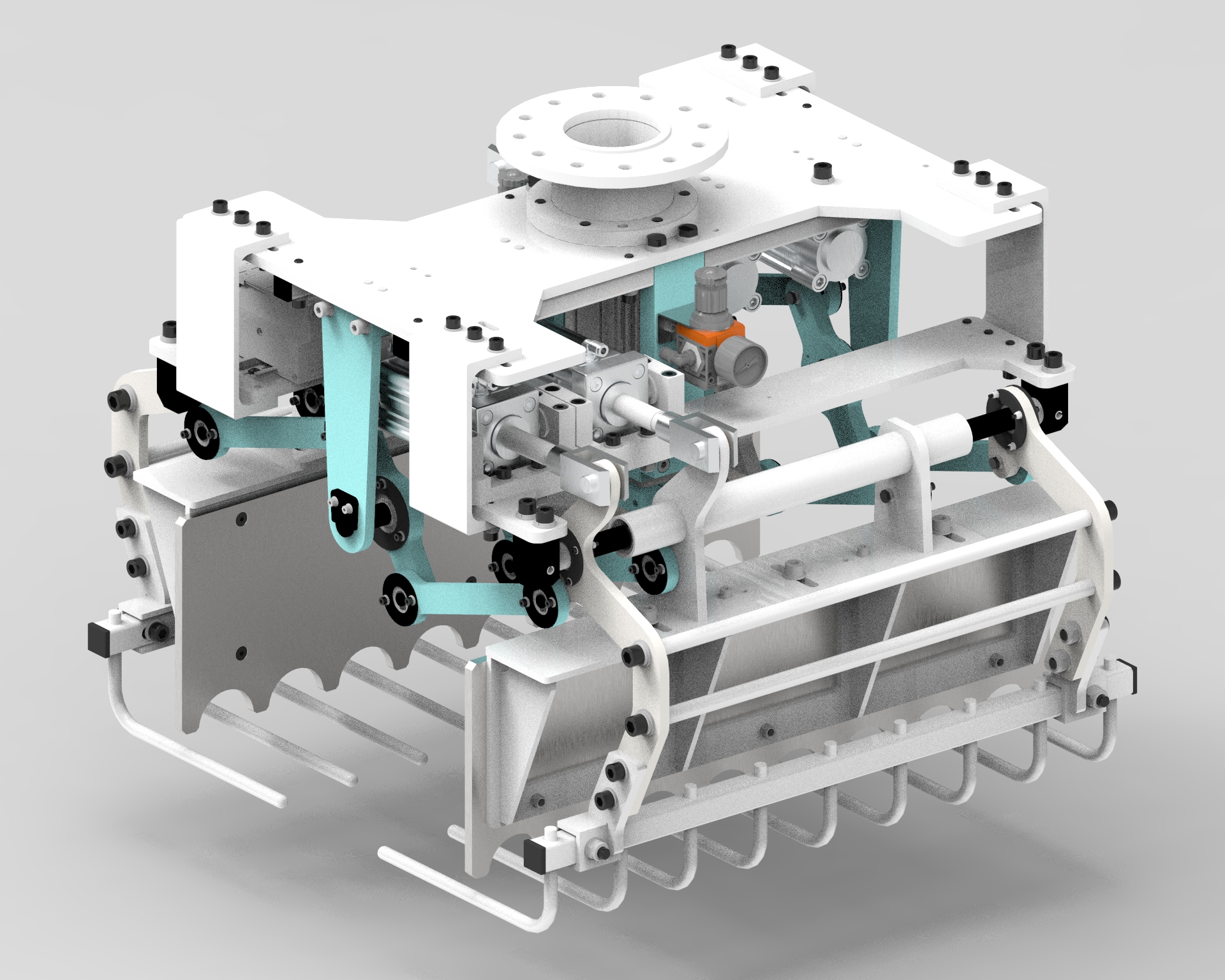

Single bag gripper - type X

Ladies and gentlemen,

Our gripper for single bags weighing up to 25 kg or 50 kg. Production takes place at the headquarters of our company in Zabrze, Silesia. Deadline for the gripper to be made up to 5 weeks. The presented gripper has been tested on many of our projects, on which this type of grippers has been laying products for several years, so you can be sure that you purchase a device tested in production. As a manufacturer, we have spare parts and we provide maintenance services for the devices we manufacture.

Technical specifications:

Name: Model X single bag gripper

Manufacturer's symbol: GMX

Dimensions: L: 650, W: 800, H: 578 (bags up to 25 kg)

Dimensions: L: 800, W: 850, H: 650 (bags up to 50 kg)

Weight: 122 kg

Maximum load: 25 kg or 50 kg

Robot connection / flange: ABB IRB660 as standard. For other robots from ABB, Kuka, Fanuc, Comau, Kawasaki, Motoman, Yaskawa and others - on request.

Dimensions of the supported bags (lying): L: 650, H: 170, W: 350 - 440 (bags up to 25 kg)

Dimensions of the supported bags (lying): L: 850, H: 240, W: 400 - 490 (bags up to 50 kg)

Pneumatic supply 6 bar, air consumption: ~ 200 l / min.

The valve terminal on the profinet network is included in the gripper (possibility to select another network or control via digital I / O signals)

Options: suction cup system for carrying dividers. The gripper is dedicated to work with the PR1 roller conveyor.

We issue a incomplete machine declaration for the gripper.

The price is for one 25 kg or 50 kg bag gripper. Net price.

We offer delivery to the customer within the country using shipping companies. It is also possible to pick up from the warehouse by prior appointment.

Delivery time: 5 - 6 weeks.
