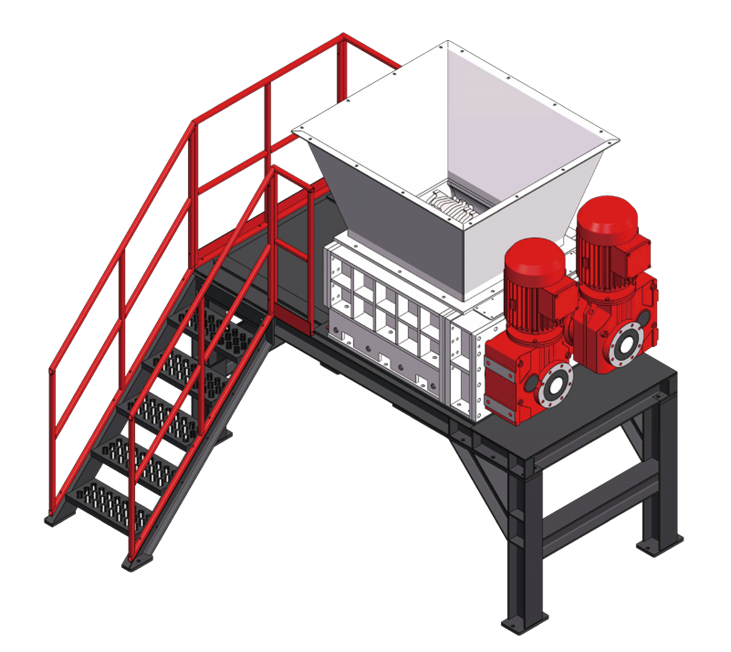

The two-shaft knife crusher is designed for shredding foil, BIG BAGs, paper, wood, etc.
The shafts have a high-strength steel structure. The shaft structure balances the static and dynamic properties to ensure smooth and reliable machine operation.
The AMWPT series double-shaft crusher uses the structure of two separate shafts. The applied solution allows to maintain high efficiency thanks to the efficient grinding and preventing the materials from winding up on the shafts.
Depending on the model of the machine and the type of material being processed, we can count on the efficiency of 300 kg / h-5000 kg / h.
All machines and installations are each time designed and configured in accordance with the individual requirements of the customer.
|
Model |
AMWPT-800/400
|
AMWPT-1000/450 |
AMWPT-1200/450 |
| Shaft length (mm) | 800 | 1000 | 1200 |
|
Shaft Diameter (mm) |
φ 400 |
φ 450
|
φ 450 |
| Speed r / min | 40 | 40 | 40 |
|
Rotary knives (pcs.) |
3 + 3 |
4 + 4 |
4 + 4 |
|
Fixed knives (pcs.) |
78 |
96 |
112 |
|
Motor power (kW)
|
45 + 45
|
55 + 55
|
75 + 75
|
|
Hydraulic power (kW) |
1.5 |
1.5 |
1.5 |
|
Chamber dimensions (mm) |
810 * 1170 | 1010 * 1490 | 1210 * 1490 |
|
Machine dimensions L * W * H (mm) |
2400 * 2160 * 2400
|
3800 * 2180 * 2650 |
4500 * 2180 * 2650 |
|
Weight (kg) |
5500 |
6500 |
10,000 |
