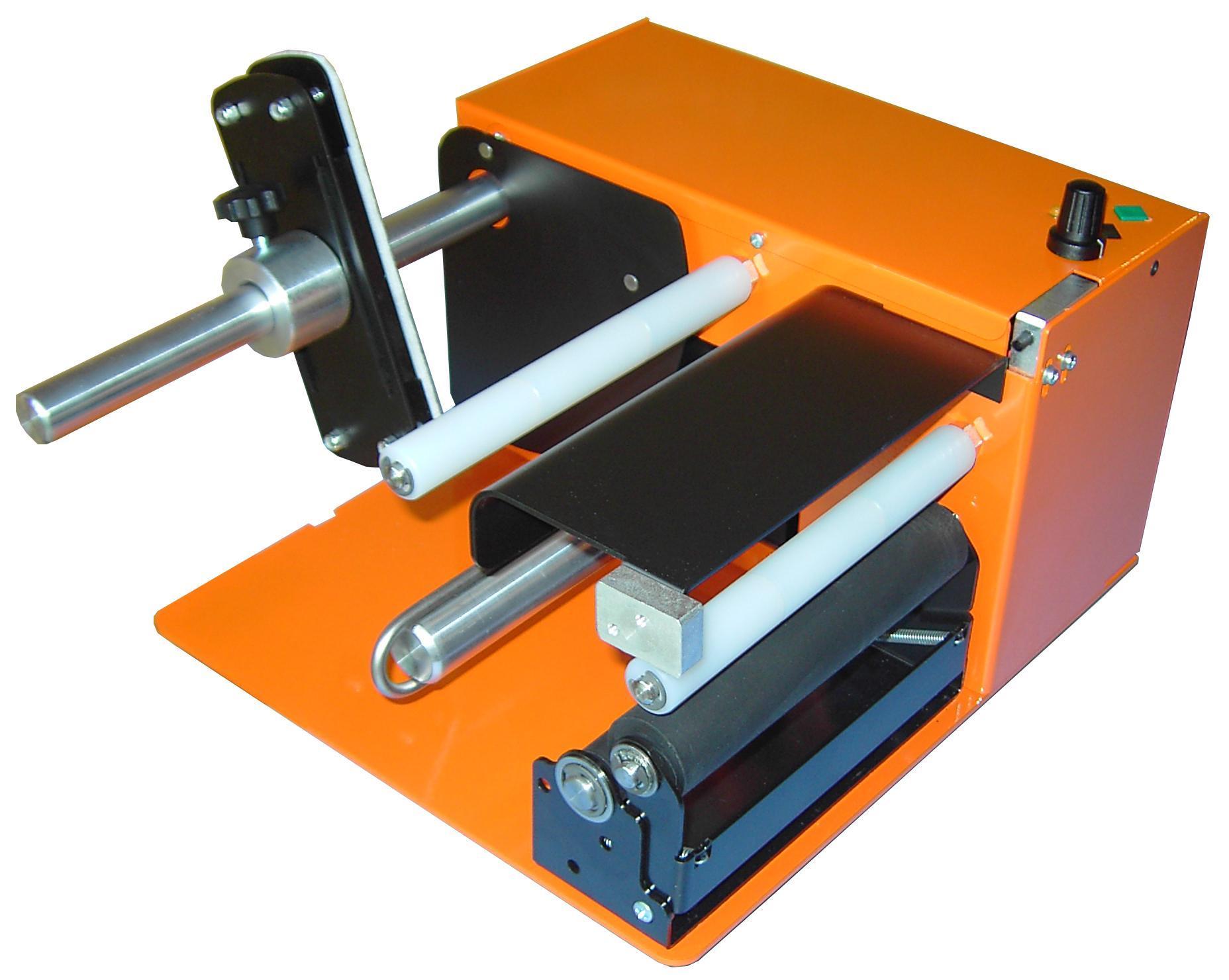

Industrial dispenser self-adhesive labels / labeler

The DP 02 series label dispenser is typically an industrial self-adhesive label feeder to facilitate labeling of products in any manufacturing sector. Equipped with a programmable label sensor and can be used for labels of any shape, either single, multicolor or transparent. It's also small in size so it can be used wherever there is not much space on the production line.

The feeder can operate in manual mode by pressing the ESC key or pedal and fully automatic . In this mode, the next one is automatically ejected after the sticky label has been removed. The dispenser is equipped with a liquid crystal display and software that allows you to define several different label lengths as well as read out or set the number of labels to extend between 0 and 9999 pieces per meter. The dispenser is available in two versions depending on the max. Label widths - DP 02 (up to 150mm), DP03 (up to 70mm) .

Label width: up to 150mm (DP02), up to 70mm (DP03)

Outside diameter: up to 200mm

Internal diameter of the roll: from 20mm with the possibility of installation of 40mm, 76mm or larger spacers.

Power supply: 110 / 230V

Dimensions: 240mm (W), 210mm (H), 260mm (D)
