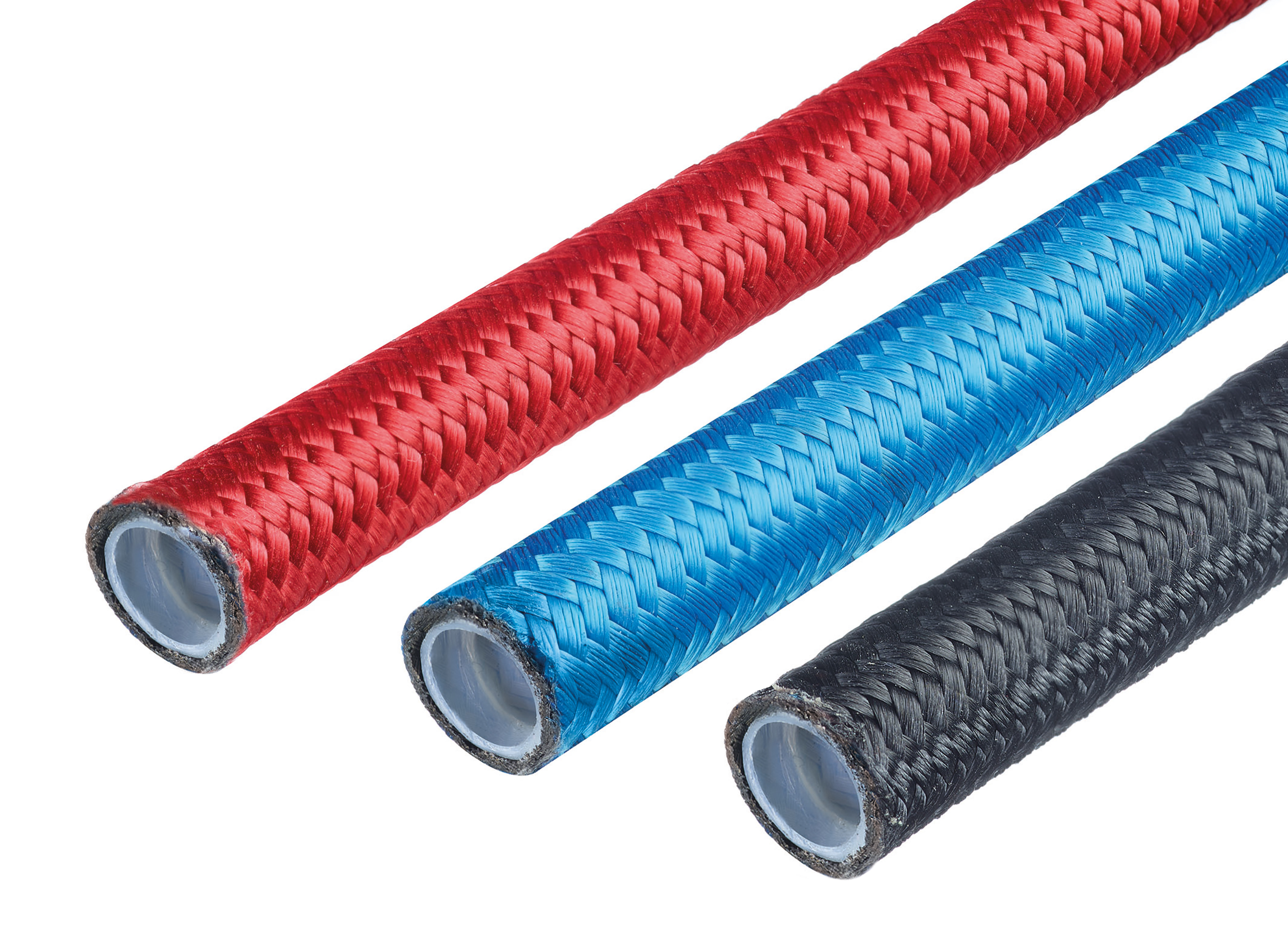

Flexible and reliable - the new range of PTFE temperature control hoses Z8565/…
Safety and reliability are essential when it comes to hoses for temperature control circuits. HASCO, the leading international supplier of standard components and accessories for tool and mouldmaking, has, with its new PTFE corrugated hose Z8565/…, extended its product portfolio with an innovative and varied range of temperature control hoses.
The core of the new corrugated hoses is made of PTFE, and they are covered with a stainless steel braiding. For better visibility, the hoses are additionally provided with a polyester yarn, which are available in the colours blue, red and black. The corrugated structure of the PTFE core ensures absolute twist resistance without any bending, and it also provides high flexibility. This enables hose routing in very small spaces. The temperature control hoses are resistant to temperatures in the range from -70 °C to +260 °C for the media of water, air and oil, and, depending on the , can withstand a maximum operating pressure of up to 138 bar.
The innovative hose range complies with the highest requirements with regards to safety at work and process safety and can also be used in sensitive production environments such as medical technology and the food industry. The temperature control hoses Z8565/… are supplied each in three different lengths and in the system diameters of 9 and 13 mm. Through the different colouring, inflow and outflow lines and temperature control, bridges can be unambiguously marked to make them clearly recognisable.

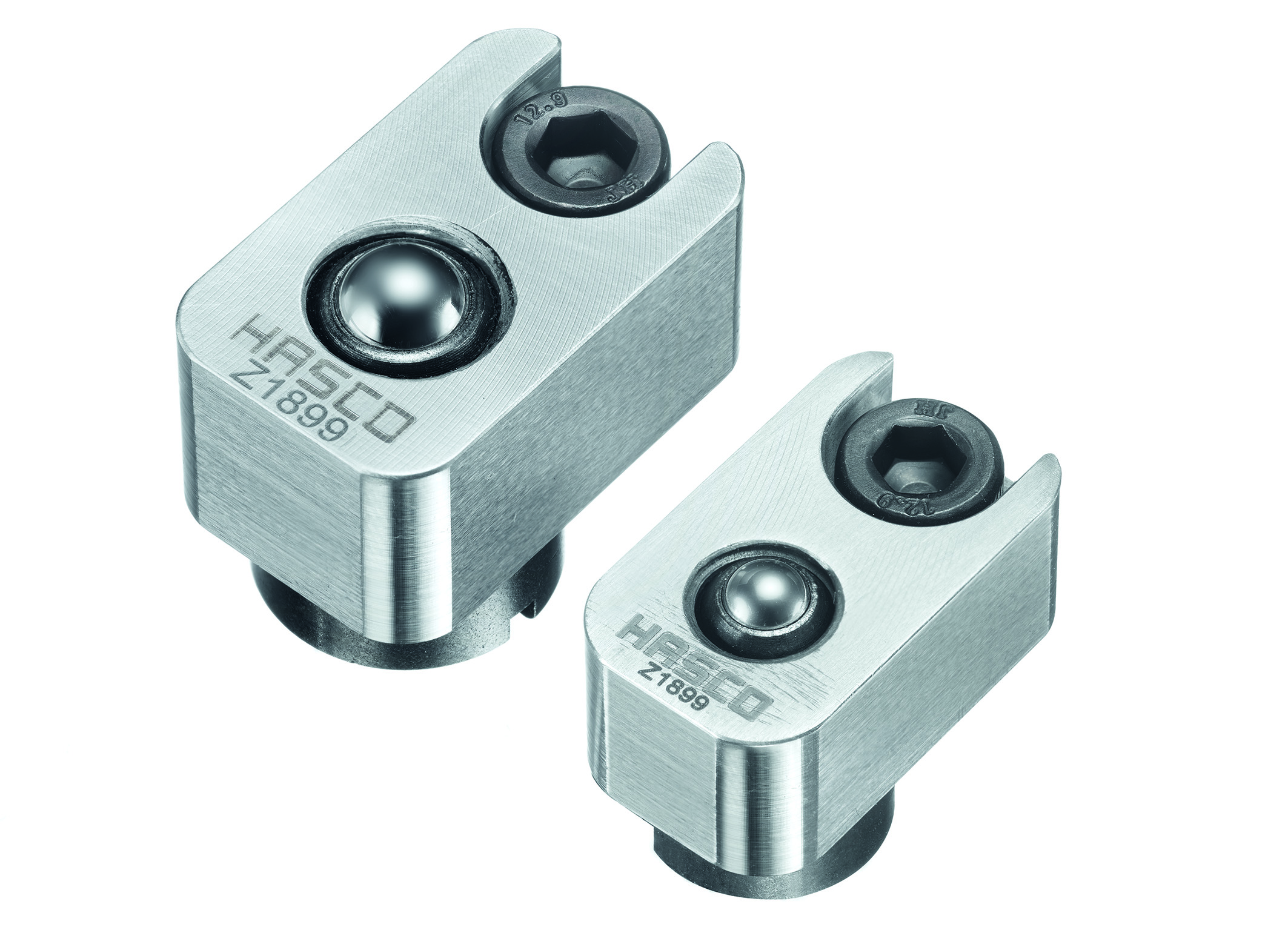

New compact slide retainer Z1899/…
With a wide range of square, round and rectangular slider housings/locking heels and slide retainers, Hasco’s extensive portfolio of standard slide units offers numerous variable installation possibilities plus maximum process reliability.
The new slide retainer Z1899/... is noted for its positive locking connection and permits secure slide positioning. Through the proven ball catch Z36/…, it also guarantees reliable locking.
The compact shape and the screw joint design of the slide retainer enable simple and fast replacement. Assembly and dismantling can be carried out directly from the parting plane. The product has versatile application possibilities because of its high temperature resistance up to 250 °C and its retention forces of 16 N to 63 N.
The new slide retainer Z1899/… is characterised by its outstanding cost-to-benefit ratio and the fact that it can be easily replaced with the help of the spring ball catch Z36/… . Therefore, it fits perfectly into Hasco's slide retainer range.
