ARGUS MASZYNY offers you mills for PE / PP materials, hard PE / PP plastics, etc.

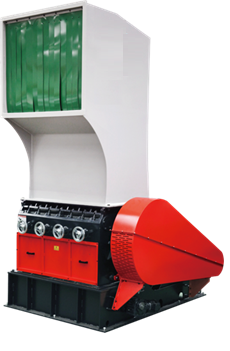

V-type mill with rotating knives arranged in relation to each other. Two groups of rotary knives are positioned alternately on the rotor at a V-shaped angle.
The mill is designed for grinding hard materials such as: lumps, car bumpers, boxes, jugs, etc.
The rotor has a high-strength steel structure. The rotor design balances the static and dynamic properties to ensure smooth and reliable machine operation.
All machines and installations are each time designed and configured in accordance with the individual requirements of the customer.
|
Model / parameter
|
AMH 600/350
|
AMH 600 / 450 |
AMH 800 / 450 |
AMH 800 / 600 |
AMH 1000/600
|
AMH 1200/600
|
AMH 1400/800
|
AMH 1600/800
|
|
Shaft length (mm)
|
600 | 600 | 800 | 800 | 1000 | 1200 | 1400 | 1600 |
|
Shaft Diameter (mm)
|
350 | 450 | 450 | 600 | 600 | 600 | 800 | 800 |
|
Shaft speed (rpm)
|
580 | 580 | 580 | 520 | 520 | 520 | 520 | 520 |
|
Number of rotary knives (pcs.）
|
2x3 |
2x3
|
2x3
|
2x5 2x7 |
2x5 2x7 |
2x5 2x7 |
2x5 2x7 |
2x5 2x7 |
|
Number of fixed knives (pcs)
|
2 | 2 | 4 | 4 | 4 | 4 | 4 | 4 |
|
Motor power (kW)
|
22 | thirty | 37 | 55 | 55/75 | 75/90 | 132/160 | 160 |
|
Hydraulic power (kW)
|
|
1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 3 | 3 |
|
Screen holes diameter (mm)
|
10-50 |
10-50
|
10-50
|
10-50
|
10-50
|
10-50
|
10-50
|
10-50
|
|
Chamber size (mm)
|
450x600
|
530x600
|
530x800
|
705x800
|
800x1000
|
850x1200
|
1400x1400
|
1600x1600
|
|
Dimensions L * W * H (mm) |
1650x1370x 1950 |
2000x1550x 2550 |
2000x1750x 3150 |
2100x1750x 3200 |
2300x1950x 3350 |
2300x2150x 3350 |
3500x2500x 5000 |
3860x2650x 5380 |
|
Weight (kg)
|
1800 |
2600
|
3100
|
3500
|
4500
|
5500
|
10,000
|
12,000
|
Please do not hesitate to contact us. We are happy to answer any questions you may have.
Meeting your expectations, ARGUS MACHINES offers a leasing offer for recycling lines and equipment, tailored to the possibilities and requirements of the customer.
If you have any questions, please do not hesitate to contact us.
Our specialists will answer all your questions.
