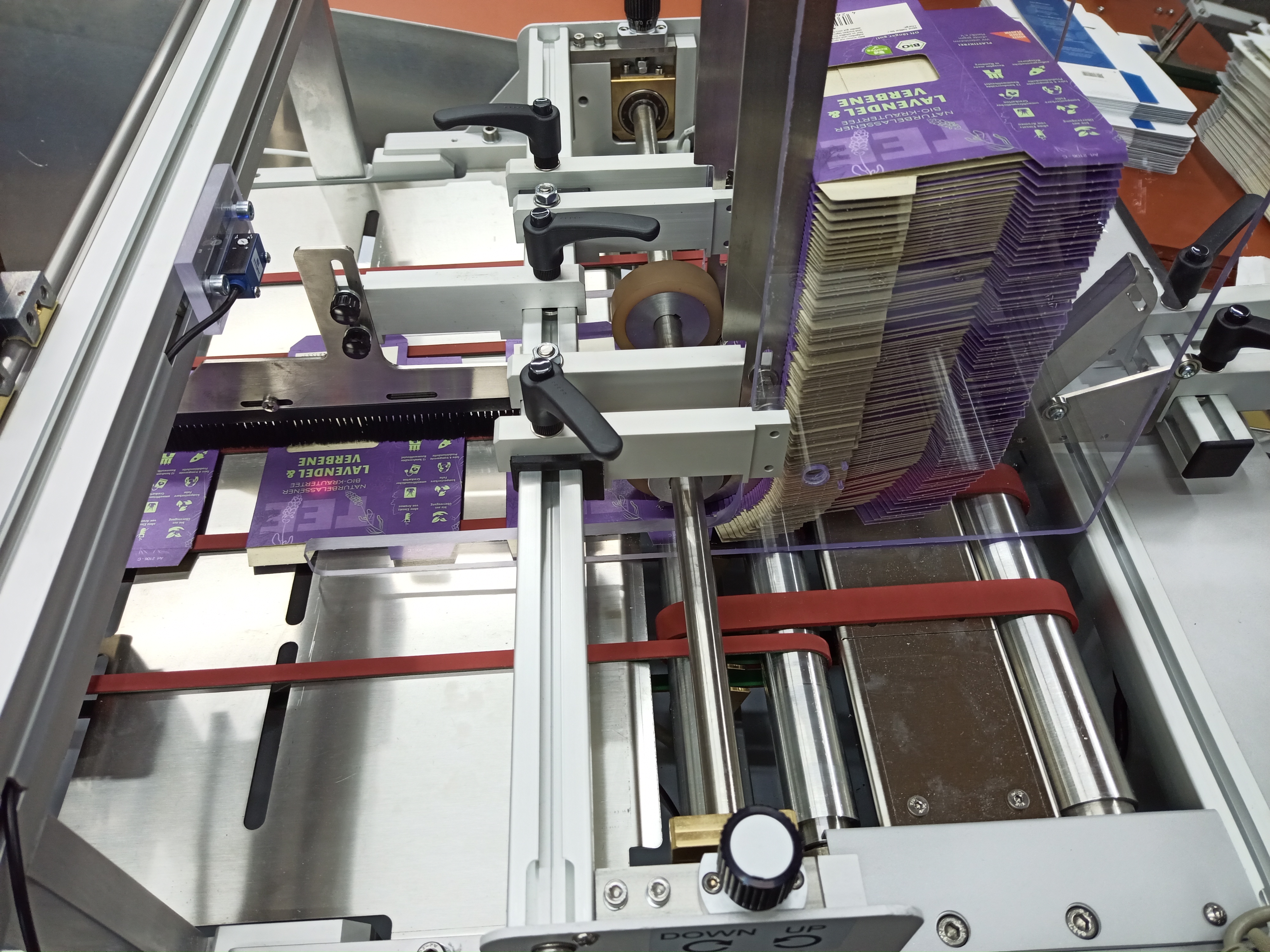

WR 400mm Carton Feeder

Friction feeder for sheets, cards, cartons, leaflets with a maximum size of 250 x 300 mm. Thanks to a powerful stepper motor, it can reach a speed of up to 50 m/min.

The feed is carried out by a rubber counter-rotating roller with micro-adjustment on the left and right side. Thanks to this solution, the feeder is extremely versatile. The 300 mm high magazine provides high throughput and ensures continuous operation.
LCD DISPLAY
The feeder is controlled by a microprocessor that uses a two-line, 20-character LCD keyboard with 7 function keys to communicate with the user. This allows you to set all operating parameters, such as continuous feeding or the number of copies on demand. You can also program the feed speed and print delay. The controller has the ability to store up to 40 different job settings.

Technical data:
Product width: min. 60 - max. 400 mm
Product length: min. 60 - max. 300 mm
Product thickness: 0.2 - 10 mm
Maximum speed: max. 70 m/min
Drive: stepper motor
Power supply: 230 Vac - 50 Hz
Power: 300 W
Dimensions: 891 x 563 x 490 (H)
Weight: 40 Kg
